Home>> AC Power Supply >> (AＳ，AＳ3)，(AS-W，AS3-W)Series

	（ＡＳ，ＡＳ3），（ＡＳ-W，ＡＳ3－Ｗ）Series Brief Summery

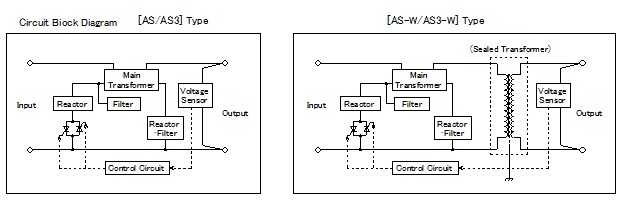

	The devices are the static constant voltage power supply system. The devices built in the controlled
	reactor, the thyristor and filter in the main circuit. and control the self-capacity.
	the devices detect the deviation of the output voltage in effective value and amplify the value
	to control the thyristor stabilize output voltage.
	The distortion waveform and the switching noises caused by the phase control of the thyristor have
	been deleted by the dedicated filter.
	The device is popular as a good quality AC Stable power Supply with low noise as well as compact
	and lidght weight.
	The -AS-W built in the compound -wound in the output which is recommended for
	the loading of the computer and others. The device insulates the input and.
	output wire and reduces the propagating noise..

（ＡＳ，ＡＳ3），（ＡＳ-W，ＡＳ3－Ｗ）Series　

（ＡＳ，ＡＳ3），（ＡＳ-W，ＡＳ3－Ｗ）Series Specifications

Input Frequenc	50 or 60Hz±2Hz	Efficiency	80％and up (1KVA and under 80～85％and over）
	Up to1φ5KVA, equipped withswitch )		(At the Input Voltage 85%）
Input Voltage Range	Rated Voltage±15％	Rated Voltage±15％	0～100％
Output Voltage Accuracy	Rated Voltage ±0.4％	Insulation Resistance	10MΩand over:Measured at DC500VM
Voltage RegulatorRange	Voltage Regulator Range	Insulate Withstand Voltage	AC1500Ｖ　one minute
Waveform Distortion Ratio	3％and under(generate distortion )	Operating Temperature	-10～40℃
Response Time	0.15second and under	Relative Humidity	30～85％ RH
	(Input Voltage15％ at Sudden Change）	Painting Color	Mansell Color 5Y7/1

（ＡＳ，ＡＳ3），（ＡＳ-W，ＡＳ3－Ｗ）Series　　

ＡＳ Series (Non-insulate Type) Single Phase Instruments List　　　

Capacity	Types		Width	Depth	Height	Weight	Dimensional Outline Drawing
ＶＡ	1φ input/Output100V	1φ input/Output200V	(mm)	(mm)	(mm)	(kg)	Number
500	ＡＳ- 500- 1	ＡＳ- 500- 2	420	400	199	22	Fig.2
1K	ＡＳ-　1K- 1	ＡＳ-　1K- 2	420	400	199	31	Fig.2
1.5K	ＡＳ-1.5K- 1	ＡＳ-1.5K- 2	420	400	199	37	Fig.2
2K	ＡＳ-　2K- 1	ＡＳ-　2K- 2	420	500	249	41	Fig.2
3K	ＡＳ-　3K- 1	ＡＳ-　3K- 2	420	500	249	52	Fig.2
5K	ＡＳ-　5K- 1	ＡＳ-　5K- 2	420	500	249	67	Fig.2
7.5K	ＡＳ-7.5K- 1	ＡＳ-7.5K- 2	450	600	860	135	Fig.3
10K	ＡＳ- 10K- 1	ＡＳ- 10K- 2	450	600	860	150	Fig.3
15K	ＡＳ- 15K- 1	ＡＳ- 15K- 2	510	690	1000	210	Fig.3
20K	ＡＳ- 20K- 1	ＡＳ- 20K- 2	580	780	1150	310	Fig.3
30K	ＡＳ- 30K- 1	ＡＳ- 30K- 2	580	780	1150	450	Fig.3
40K	ＡＳ- 40K- 1	ＡＳ- 40K- 2	650	850	1300	650	Fig.3
50K	ＡＳ- 50K- 1	ＡＳ- 50K- 2	750	1000	1550	800	Fig.3

AＳ3 Series（Non-Insulate Instrument）3 Phase Instruments List

Capacity	Types	Width	Depth	Height	Weight	Dimensional Outline Drawing
ＶＡ	3φ Input/Output 200V	(mm)	(mm)	(mm)	(kg)	Number
3K	ＡＳ3 - 　3K	400	550	770	120	Fig.3
5K	ＡＳ3 - 　5K	400	550	770	150	Fig.3
7.5K	ＡＳ3 - 7.5K	450	600	860	200	Fig.3
10K	ＡＳ3 - 10K	510	690	1000	250	Fig.3
15K	ＡＳ3 - 15K	580	780	1150	350	Fig.3
20K	ＡＳ3 - 20K	580	780	1150	400	Fig.3
30K	ＡＳ3 - 30K	650	850	1300	550	Fig.3
50K	ＡＳ3 - 50K	750	1000	1550	850	Fig.4

ＡＳ-Ｗ Series（Insulate Shield Types）Single Phase Instrument List　　　

Capacity	Types		Width	Depth	Height	Weight	Dimensional Outline Drawing
ＶＡ	1φ input/Output100V	1φ input/Output200V	(mm)	(mm)	(mm)	(kg)	Number
500	ＡＳ- 500- 1Ｗ	ＡＳ- 500- 2Ｗ	420	400	199	33	Fig.2
1K	ＡＳ-　1K- 1Ｗ	ＡＳ-　1K- 2Ｗ	420	500	249	43	Fig.2
1.5K	ＡＳ-1.5K- 1Ｗ	ＡＳ-1.5K- 2Ｗ	420	500	249	52	Fig.2
2K	ＡＳ-　2K- 1Ｗ	ＡＳ-　2K- 2Ｗ	420	500	349	72	Fig.2
3K	ＡＳ-　3K- 1Ｗ	ＡＳ-　3K- 2Ｗ	420	500	349	79	Fig.2
5K	ＡＳ-　5K- 1Ｗ	ＡＳ-　5K- 2Ｗ	400	550	770	140	Fig.3
7.5K	ＡＳ-7.5K- 1Ｗ	ＡＳ-7.5K- 2Ｗ	450	600	860	200	Fig.3
10K	ＡＳ- 10K- 1Ｗ	ＡＳ- 10K- 2Ｗ	510	690	1000	270	Fig.3
15K	ＡＳ- 15K- 1Ｗ	ＡＳ- 15K- 2Ｗ	580	780	1150	370	Fig.3
20K	ＡＳ- 20K- 1Ｗ	ＡＳ- 20K- 2Ｗ	580	780	1150	450	Fig.3
30K	ＡＳ- 30K- 1Ｗ	ＡＳ- 30K- 2Ｗ	650	850	1300	650	Fig.3
40K	ＡＳ- 40K- 1Ｗ	ＡＳ- 40K- 2Ｗ	750	1000	1550	900	Fig.4
50K	ＡＳ- 50K- 1Ｗ	ＡＳ- 50K- 2Ｗ	850	1100	1800	1200	Fig.4
＊12W at Input 100V Output 200V　21W at Input 200V Output100V. The different voltage are available upon request .

ＡＳ3－Ｗ Series（Insulate Shield Device）3 Phase Instrument List　　　

Capacity	Types		Width	Depth	Height	Weight	Dimensional Outline Drawing
ＶＡ	3φInput/Output200V	3φInput440V Output200V	(mm)	(mm)	(mm)	(kg)	Number
3K	ＡＳ3-　3KＷ	ＡＳ3-　3KＷ- 42	510	690	1000	190	Fig.3
5K	ＡＳ3-　5KＷ	ＡＳ3-　5KＷ- 42	510	690	1000	220	Fig.3
7.5K	ＡＳ3-7.5KＷ	ＡＳ3-7.5KＷ- 42	510	690	1000	280	Fig.3
10K	ＡＳ3- 10KＷ	ＡＳ3- 10KＷ- 42	580	780	1150	380	Fig.3
15K	ＡＳ3- 15KＷ	ＡＳ3- 15KＷ- 42	650	850	1300	500	Fig.3
20K	ＡＳ3- 20KＷ	ＡＳ3- 20KＷ- 42	650	850	1300	600	Fig.3
30K	ＡＳ3- 30KＷ	ＡＳ3- 30KＷ- 42	750	1000	1550	750	Fig.4
50K	ＡＳ3- 50KＷ	ＡＳ3- 50KＷ- 42	850	1000	1800	1300	Fig.4
＊Input 220Ｖ　Output 380Ｖ、400Ｖ are available upon order。

（ＡＳ，ＡＳ3）,（ＡＳ-W，ＡＳ3－Ｗ）Series Dimensional Outline Drawing (Fig..2)

（ＡＳ，ＡＳ3）,（ＡＳ-W，ＡＳ3－Ｗ）Series Dimensional Outline Drawing (Fig..3)

（ＡＳ，ＡＳ3）,（ＡＳ-W，ＡＳ3－Ｗ）Series Dimensional Outline Drawing（Fig..４) 　
