  BC-M，BC-MB Ｓｅｒｉｅｓ（Valve Regulated Lead Acid Battery for ＭSE・HSE）Summery
The batteries for the uninterruptible power source and emergency power source facilities
are requested the maintenance free as well as long life operating from users recently.
  And the Valve Regulated Lead Acid Batteries are dominating in the market..
The BC-M ,BC-MB are the small and medium size capacity floating charger. The devices adopt
the thyristor phase control system plus LC filter by which reduce the ripple and provide the
constant voltage and constant current waveform.
  The device also built in the over voltage trip circuit which protecting rechargeable battery from
  the malfunction. The devices also built in the overloading voltage trip circuit to protect battery
  from the rechargeable malfunction and also built in the function to temporary reduces 5-6%
  of the rechargeable voltage by receiving the battery contact temperature abnormality signal.

We provide the BC-M type which dedicated to the charging and .the BC-MB type which

builts in the over discharge protection circuit with the rechargeable functions..The BC-M type
  builts in the over discharge protection circuit for the rechargeable battery.

  BC-M,BC-MB Series (for Valve Regulated Lead Acid Battery MSE・HSE)　Specifications　　　

  BC-M,BC-MB Series (for Valve Regulated Lead Acid Battery MSE・HSE)　Specifications　　　
input Voltage  1φ100V､200V　±10％ Dicscharge Circuit
Current 		 Same as the rated output(for BC-MB)
Frequency  For both 50Hz／60Hz±2Ｈｚ

Ambient Temperature/Humidit

 0～40℃　30～85％RH
Output Rated Voltage  DC12V、24V、48V、108V Insulated Strength  ＡＣ1500Ｖ　Oｎｅ　ｍｉｎｕｉｔｅ
Charge Voltage 2.23V／cell  Insulate Resistance  10ＭΩ,measured at DC500ＶM
Droop Current  105％ of the rated current Paint Color  5Y7/1

　*We are ready to provide other than above listed Input Voltage and the Output Rated Voltage
　　facilities upon request. Please order us any other special specifications.
　*By adjusting the charge voltage setting value（at ordering stage）,these are also applicable
　　to M Type battery
　*The water retentivity valve regulated lead acid battery（HS､CS､PS）also include the BC-P Series.

  BC-M,BC-MB Series (For Valve Regulated Lead Acid Battery MSE・HSE）　　


　Explanation on types

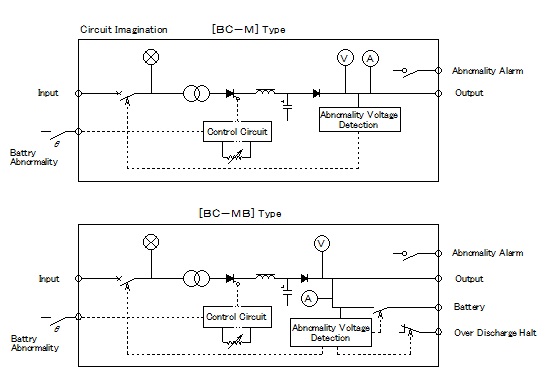

Ｂ Ｃ － ２ Ｚ　Ｍ　B　1－ ２ ０  ①Rated output 　　 voltage  ②Circuit 　　　　　　　 Composition ③Input  Voltage  ④Output 　 　 Current
　 　　　①　 　 ② ③ 　④ 　1Z：DC12V 　No Mark:Dedicated 　 to Charge 　1：ＡC1００V
  　2Z：DC24V 　B ：With Discharge 　　　Circuit 　2：ＡC２００V
  　4Z：DC48V
  　9Z：DC108V
  BC-M.BC-MB Sereis (For the Valve Regulated Lead Acid Battery MSE・HSE）
Output Types(BC-M)  Types(BC-MB)  Width Depth Height  Weight
Rated Voltage Current InputAC100V  InputAC200V  InputAC100V  InputAC200V  mm mm mm kg
12V
  		 15A  BC-1ZM1-15  BC-1ZM2-15  BC-1ZMB1-15  BC-1ZMB2-15  420  400  199  25
20A  BC-1ZM1-20  BC-1ZM2-20  BC-1ZMB1-20  BC-1ZMB2-20  420  400  199  28
30A  BC-1ZM1-30  BC-1ZM2-30  BC-1ZMB1-30  BC-1ZMB2-30  420  500  249  40
40A  BC-1ZM1-40  BC-1ZM2-40  BC-1ZMB1-40  BC-1ZMB2-40  420  500  349  45
24V
 10A BC-2ZM1-10  BC-2ZM2-10  BC-2ZMB1-10  BC-2ZMB2-10  420  400  199  25
15A BC-2ZM1-15  BC-2ZM2-15  BC-2ZMB1-15  BC-2ZMB2-15  420  500  249  30
20A BC-2ZM1-20  BC-2ZM2-20  BC-2ZMB1-20  BC-2ZMB2-20  420  500  249  33
30A BC-2ZM1-30  BC-2ZM2-30  BC-2ZMB1-30  BC-2ZMB2-30  420  500  349  45
40A BC-2ZM1-40  BC-2ZM2-40  BC-2ZMB1-40  BC-2ZMB2-40  420  500  349  60
 48V
    		 6A BC-4ZM1- 6  BC-4ZM2- 6  BC-4ZMB1- 6  BC-4ZMB2- 6  420  400  199  27
10A BC-4ZM1-10  BC-4ZM2-10  BC-4ZMB1-10  BC-4ZMB2-10  420  400  199  34
15A BC-4ZM1-15  BC-4ZM2-15  BC-4ZMB1-15  BC-4ZMB2-15  420  500  249  45
20A BC-4ZM1-20  BC-4ZM2-20  BC-4ZMB1-20  BC-4ZMB2-20  420  500  349  55
30A BC-4ZM1-30  BC-4ZM2-30  BC-4ZMB1-30  BC-4ZMB2-30  420  500  349  70
108V
   		 3A BC-9ZM1- 3  BC-9ZM2- 3  BC-9ZMB1- 3  BC-9ZMB2- 3  420  400  199  27
6A BC-9ZM1- 6  BC-9ZM2- 6  BC-9ZMB1- 6  BC-9ZMB2- 6  420  500  249  40
10A BC-9ZM1-10  BC-9ZM2-10  BC-9ZMB1-10  BC-9ZMB2-10  420  500  349  55
15A BC-9ZM1-15  BC-9ZM2-15  BC-9ZMB1-15  BC-9ZMB2-15  420  500  349  70

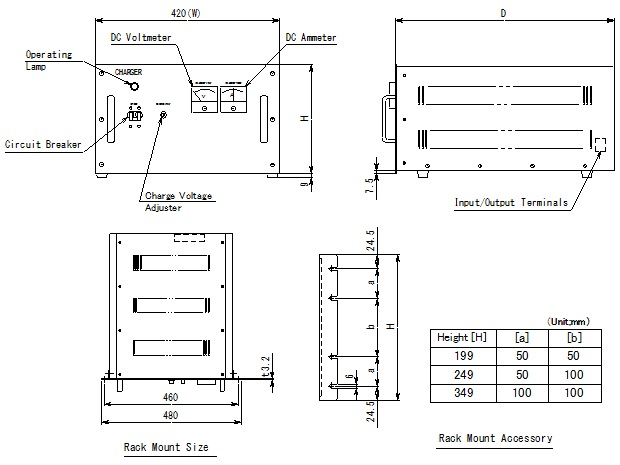

  BC-M，BC-MB Series（for Valve Regulated Lead Acid Battery ＭSE・HSE） Dimensional Outline Drawing
