	ＴＤ Series （ Dedicated Power Supply for the Current Sensor） Summery

	TD Series is the dedicated Power Supply for the Current Sensor.
	Adoptｓ the low nose Dropper Control(Non switching system)
	The TD-1000(for the single channel) and the TD-2500(for the 3channel) are available
	As the option the sensor connectioion cable(TD-C2)between the Power Supply
	and the Current Sensor is available.
	As the option the TD-R2 Signal cable between the power supply and the Ammeter is
	available as option.

ＴＤ Series　　　Specifications

Input Voltage	AC100V±10％（50～60Hz）	Ripple	3mVp-p and below
Output Voltage	DC±15V	Insulation Withstand Voltage	(Between Input Case ) AC1000Ｖ１minute
Input Fluctuation	At90～110V：±30mV and below	Insulation Withstand Voltage	(Between Output Case ) AC500Ｖ１minute
Loading Fluctuation	0～100％：50mV and below	Painting Color	BN-8 30% gloss Finish.
Output Current	(TD-1000)1A/(TD-2500)2.5A	weight	(TD-1000)2.4Kｇ/(TD-2500)6.2Kg

ＴＤ Series　　　　　　　　

TD-C2 ( Sensor Connect Cable )　　　　

		Connect cable between Power Supply and Current Sensor
		Standard length is 2m.
		Optional accessory.
Price　￥7,500

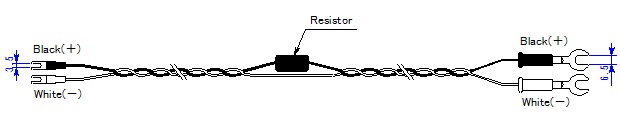

TD-R2 ( Signal Cable )　　　　

		Signal cable between power supply and power meter.
		Standard length is 2m.
		Optional accessory.
Price　￥6,250

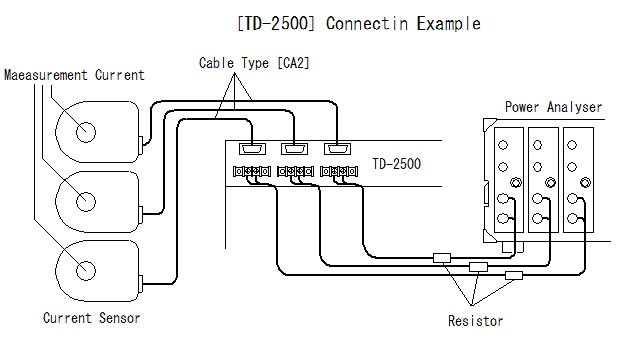

Example of the ＴＤ－２５００ ( for 3 channel )　　　　

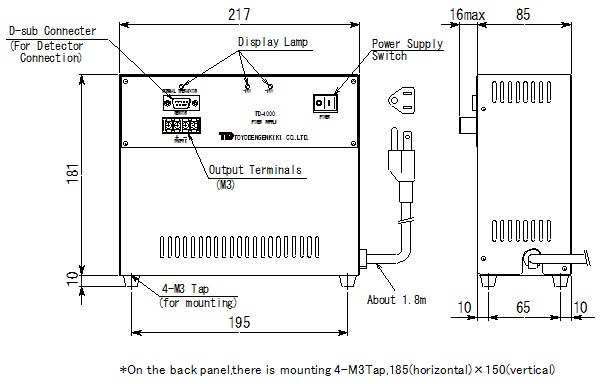

ＴＤ－１０００（ for Single Channel ) Dimensional Outline Drawing　

TD-2500 ( for 3channel ) Dimensional Outline Drawing
