The
devices are the non feedback type constant voltage power supply. The devices
stabilize the |
|
output
voltage for the fluctuation of the input voltage by composing the iron resonate
circuit by |
|
means
of resonating the secondary saturate inductance and condenser in parallel. |
|
Adding
to the input/output insulation, by equipping the serial wide capacity reactor
in the |
|
circuit, the devices offers effective noise filter ability in the lowpass
filter area where |
| |
the
reduction of the nose is difficult. |
|
The
compact, light weight and the maintenance free design provide the long life instrument,
and |
|
protect
from the overload, short circuit by output droop. |
|
The AV
Type offers constant output voltage effective value regardless of the output |
|

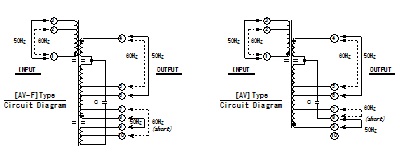

voltage waveform. While AV-F Type built in the
filter and equipped with the waveform
|
| |
compensate
coil for the sine wave output. |
|
The
AG-F type is for the general instruments
and the AG type is for primary energy
power supply |
| |
for the prime energy such as the
heat, light which effective value are prevails over.
|
 |
`u|e
Series@@ ( Input ) |
( Output ) |
 |
