  BC-P，BC-PB　Ｓｅｒｉｅｓ（Water Reｔentivity Valve Regulated Lead Acid Battery for HS・CS・PS）Summery
The devices are middle and compact size charger of the water retentiviｔy valve regulated
lead battery which are used for the uninterruptible power store system and emergency
power source and so on.The device also built in the over voltage trip circuit which
  protecting rechargeable battery from the malfunction
The devices are able to　uniform charging through the panel switching operation.
  (The automatic uniform charging( option) and so on are available upon request.)

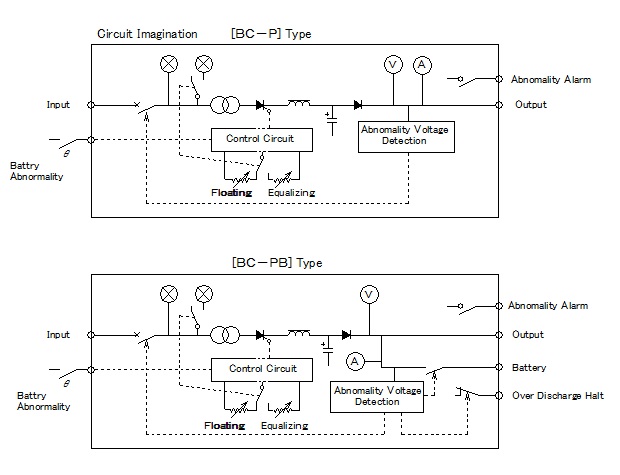

We provide the BC-P type which dedicated to the rechargeable and .the BC-PB type
which builts in the over discharge protection circuit with the rechargeable functions.
As standard, charging voltage is set at the HS type, but the charge voltage is settable
  at the CS and PS types,with the setting of the regulator

  ＢＣ－P，ＢＣ－PＢ Series(For the Water Repetitive Valve Regulated Lead Acid Battery MSE・HSE） Summery　　　
  BC-P，BC-PB Series（for the Water Repetitive Valve Regulated Lead Acid Battery HS・CS・PS）　Summery　　　
Input voltage  1φ100V､200V　±10％ Discharge Circuit Current  Same with the Rated output(BC-PB)Type
Frequency  50Hz／60Hz for both　±2Hz Ambient temperature ・ humidity  0～40℃　30～85％RH
Input rated voltage  DC12V、24V、48V、108V Insulated strength  AC1,500Ｖ　One minute
Charge voltage  2.18V／2.3Ｖ（Per cell）  Insulate resistance  10ＭΩ measured a tDC500Ｖ
Droop current  105％ of the Rated Current Paint color  5Y7/1

　*We　are ready to provide  other than above listed Input Voltage the Output Rated Voltage
　　facilities upon your request. Please order us any other special specifications.
　*By adjusting the charge voltage setting value（at ordering stage）, these are also
 　applicable to M Type battery
　*The water retentivity valve regulated lead acid battery（HS、CS、PS）also include the BC-P Series.
　*We　are ready to offer the alkaline battery upon request.



BC-P，BC-PB Series（for the Water Retentivity valve regulated lead acid battery HS・CS・PS）


　Explanation on types
Ｂ Ｃ － ２ Ｚ　Ｐ　B　1－ ２ ０  ①Output rated 　　　 voltage  ②Circuit 　　　　　　　 composition ③Input voltage  ④Output 　　　　 current
　 　　　①　 　 ② ③ 　④ 　1Z：DC12V 　No mark:　 　　　　　Dedicated for 　　　charge 　1：ＡC1００V
  　2Z：DC24V 　With the 　　　　　　discharge circuit 　2：ＡC２００V
  　4Z：DC48V
  　9Z：DC108V
  BC-P，BC-PB Series （for the Watere Receptivity Valve Regulated Lead Acid Battery HS・CS・PS）　　
Output Type(BC-Ｐ)  Type(BC-ＰB)  Width Depth Height  Weight
Rated voltage Current InputAC100V  InputAC200V  InputAC100V  InputAC200V  mm mm mm kg
12V
  		 15A  BC-1ZＰ1-15  BC-1ZＰ2-15  BC-1ZＰB1-15  BC-1ZＰB2-15  420  400  199  25
20A  BC-1ZＰ1-20  BC-1ZＰ2-20  BC-1ZＰB1-20  BC-1ZＰB2-20  420  400  199  28
30A  BC-1ZＰ1-30  BC-1ZＰ2-30  BC-1ZＰB1-30  BC-1ZＰB2-30  420  500  249  40
40A  BC-1ZＰ1-40  BC-1ZＰ2-40  BC-1ZＰB1-40  BC-1ZＰB2-40  420  500  349  45
24V
 10A BC-2ZＰ1-10  BC-2ZＰ2-10  BC-2ZＰB1-10  BC-2ZＰB2-10  420  400  199  25
15A BC-2ZＰ1-15  BC-2ZＰ2-15  BC-2ZＰB1-15  BC-2ZＰB2-15  420  500  249  30
20A BC-2ZＰ1-20  BC-2ZＰ2-20  BC-2ZＰB1-20  BC-2ZＰB2-20  420  500  249  33
30A BC-2ZＰ1-30  BC-2ZＰ2-30  BC-2ZＰB1-30  BC-2ZＰB2-30  420  500  349  45
40A BC-2ZＰ1-40  BC-2ZＰ2-40  BC-2ZＰB1-40  BC-2ZＰB2-40  420  500  349  60
 48V
    		 6A BC-4ZＰ1- 6  BC-4ZＰ2- 6  BC-4ZＰB1- 6  BC-4ZＰB2- 6  420  400  199  27
10A BC-4ZＰ1-10  BC-4ZＰ2-10  BC-4ZＰB1-10  BC-4ZＰB2-10  420  400  199  34
15A BC-4ZＰ1-15  BC-4ZＰ2-15  BC-4ZＰB1-15  BC-4ZＰB2-15  420  500  249  45
20A BC-4ZＰ1-20  BC-4ZＰ2-20  BC-4ZＰB1-20  BC-4ZＰB2-20  420  500  349  55
30A BC-4ZＰ1-30  BC-4ZＰ2-30  BC-4ZＰB1-30  BC-4ZＰB2-30  420  500  349  70
108V
   		 3A BC-9ZＰ1- 3  BC-9ZＰ2- 3  BC-9ZＰB1- 3  BC-9ZＰB2- 3  420  400  199  27
6A BC-9ZＰ1- 6  BC-9ZＰ2- 6  BC-9ZＰB1- 6  BC-9ZＰB2- 6  420  500  249  40
10A BC-9ZＰ1-10  BC-9ZＰ2-10  BC-9ZＰB1-10  BC-9ZＰB2-10  420  500  349  55
15A BC-9ZＰ1-15  BC-9ZＰ2-15  BC-9ZＰB1-15  BC-9ZＰB2-15  420  500  349  70

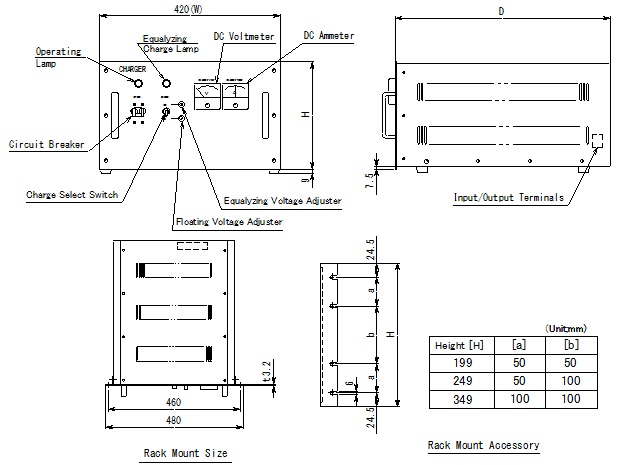

  BC-P , BC-PB Series （for Watere Receptivity Valve Regulated Lead Acid Battery CS・PS） Dimensional Outline Drawing
