ＭＧ，ＭＧ３ Series　 Brief Summery

	The rotary(Mortar Generation Type) Frequency Convertor Device which integrated a Synchronous
	Mortar, a Synchronous Generator and a System Control Device into one architecture.
	By adopting the brushless generator the waveform distortion is extremely
	low and immune to the effect of the surge and the line noise.
	Adopting the control panel the device saves the space at installation and need not wire ring between
	the control panel and the main frame.
	Equipped with the common shaft which rotating with low speed of 600rpm between Synchronous
	Motor and Generator provides low noise environment.

ＭＧ，ＭＧ３ Series Application

	When the voltages of the NC ｍmachineries, precision instrument are unstable
	For various electric measuring instruments.
	For the chemical plants
	For the various test instruments

ＭＧ，ＭＧ３ Series　　Specifications

Input Voltage	3Phase 3Wire ・ 200V or 400 system (Specified)
Output Voltage	1Phase 2Wire ・ 3Phzse 3Wire・ 200V or 400 system (Specified)
Input/output Frequenc	50Ｈz or 60Ｈz (Specified)	Output Frequency Fluctuation	Same with the Commercial Power Supply
Output Voltage Fluctuation Ratio	Same with the Commercial Power Supply	Waveform Distortion Rat	3％and within

ＭＧ Series　　　　　Single Phase

Capacity

Types

Width

Height

Depth

Weight

Dimensional Outline Drawing

ＶＡ

Output Frequency 50Hz

Output Frequency 60Hz

Fig.Number

5Ｋ

　　　　ＭＧ- 5Ｋ -5

　　　　ＭＧ- 5Ｋ -6

970

1320

550

800

Fig.1

10Ｋ

　　　　ＭＧ-10Ｋ- 5

　　　　ＭＧ-10Ｋ- 6

1050

1320

550

850

Fig.1

15Ｋ

　　　　ＭＧ-15Ｋ- 5

　　　　ＭＧ-15Ｋ- 6

1150

1320

550

980

Fig.1

20Ｋ

　　　　ＭＧ-20Ｋ- 5

　　　　ＭＧ-20Ｋ- 6

1260

1680

700

1450

Fig.1

30Ｋ

　　　　ＭＧ-30Ｋ- 5

　　　　ＭＧ-30Ｋ- 6

1320

1680

700

1750

Fig.1

40Ｋ

　　　　ＭＧ-40Ｋ- 5

　　　　ＭＧ-40Ｋ- 6

1430

1680

700

2100

Fig.1

50Ｋ

　　　　ＭＧ-50Ｋ- 5

　　　　ＭＧ-50Ｋ- 6

1480

1900

900

3200

Fig.1

60Ｋ

　　　　ＭＧ-60Ｋ- 5

　　　　ＭＧ-60Ｋ- 6

1540

1900

900

3600

Fig.1

80Ｋ

　　　　ＭＧ-80Ｋ- 5

　　　　ＭＧ-80Ｋ- 6

1700

1900

900

3800

Fig.1

100Ｋ

　　　　ＭＧ-100Ｋ-5

　　　　ＭＧ-100Ｋ-6

1800

2100

1100

4500

Fig.1

ＭＧ３ Series　 3 Phase

Capacity

Types

Width

Heigh

Depth

Weight

Dimensional Outline Drawing

ＶＡ

Output Frequency 50Hz

Output Frequency 60Hz

Fig.Number

5Ｋ

ＭＧ3- 5Ｋ -5

ＭＧ3 -5Ｋ -6

970

1320

550

780

Fig.1

10Ｋ

ＭＧ3-10Ｋ- 5

ＭＧ3-10Ｋ- 6

970

1320

550

830

Fig.1

15Ｋ

ＭＧ3-15Ｋ- 5

ＭＧ3-15Ｋ- 6

1050

1320

550

970

Fig.1

20Ｋ

ＭＧ3-20Ｋ- 5

ＭＧ3-20Ｋ- 6

1150

1320

550

1030

Fig.1

30Ｋ

ＭＧ3-30Ｋ- 5

ＭＧ3-30Ｋ- 6

1260

1680

700

1500

Fig.1

40Ｋ

ＭＧ3-40Ｋ- 5

ＭＧ3-40Ｋ- 6

1320

1680

700

1750

Fig.1

50Ｋ

ＭＧ3-50Ｋ- 5

ＭＧ3-50Ｋ- 6

1400

1680

700

1900

Fig.1

60Ｋ

ＭＧ3-60Ｋ- 5

ＭＧ3-60Ｋ- 6

1480

1900

900

3000

Fig.1

80Ｋ

ＭＧ3-80Ｋ- 5

ＭＧ3-80Ｋ- 6

1540

1900

900

3300

Fig.1

100Ｋ

ＭＧ3-100Ｋ-5

ＭＧ3-100Ｋ-6

1640

1900

900

3800

Fig.1

150Ｋ

ＭＧ3-150Ｋ-5

ＭＧ3-150Ｋ-6

1800

2100

1100

5100

Fig.1

200Ｋ

ＭＧ3-200Ｋ-5

ＭＧ3-200Ｋ-6

1930

2100

1100

6000

Fig.1

300Ｋ

ＭＧ3-300Ｋ-5

ＭＧ3-300Ｋ-6

2760

2395

1300

6800

Fig.2

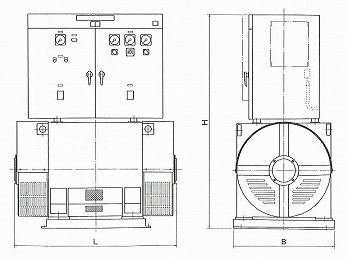

ＭＧ，ＭＧ３ Series　　Dimensional Outline Drawing　　　（　Fig.1 ）　　

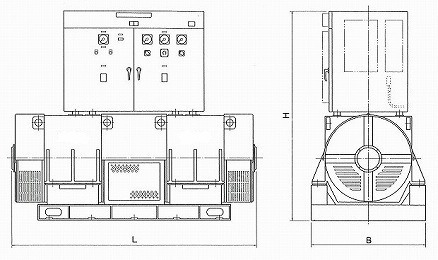

ＭＧ，ＭＧ３ Series　　Dimensional Outline Drawing　　　（　Fig.2 ）　　
