Home >> DC-AC Inverter>> ＮＳ，ＮＳ３ Series

	ＮＳ，ＮＳ3 Series　Brief Summery

	The NS, NS3 Series are the DC-AC inverter. The devices built in the CVT(Constant Voltage
	Transformer) as main circuit which coverｓ the most practical and ideal characteristics as the
	power supply and make the most use of the CVT characteristics with the simple peripheral circuitries.
	The NS, NS3 Series meet the severe conditions with the superior overload tolerate and
	the high conversion efficiency as the inverter which can drive the various loading..
	The NS, NS3 Series’s rich lines of products which cover wide range of Input voltage and
	the unique production system to deliver in a short time periods from one device have
	been receiving good reputation from the customers.

ＮＳ，ＮＳ３ Series 　　　　Specifications

Input Voltage	DC12,24,48,100,200V	Response Rate	0.15 Seconds and within
Input Voltage Range	90～140％	Efficiency Rate	65～85％ and over
Output Voltage	AC100Ｖor 200V±2％		Differs by the input voltage capacity
Output Voltage Deviation	±2％	AmbientTemparature	-10～40℃
Frequency	50Ｈｚ or 60Ｈｚ±1％	Insulate Reistanance	10ＭΩ:Measured at DC500ＶMG:
Waveform	Sine Wave	Withstand Voltage	AC1500Ｖ（50Ｈｚ）１minute
Waveform Deviation Rate	5％ and below

ＮＳ，ＮＳ３ Series　　　

ＮＳ Series　　Single Phase Output Products List　　　

Input Voltage	Capacity	Types		Width	Depth	Height	Weight	Dimensional OutlineDrawing
（Ｖ）	（ＶＡ）	Output 1φAC100V	Output1φAC200V	(mm)	(mm)	(mm)	(kg)	Figure Number
12	50	ＮＳ- 　50-　1Ｚ1	ＮＳ- 　50-　1Ｚ2	230	230	150	9	Fig.1
	100	ＮＳ- 100-　1Ｚ1	ＮＳ- 100-　1Ｚ2	420	400	199	17	Fig.2
	200	ＮＳ- 200-　1Ｚ1	ＮＳ- 200-　1Ｚ2	420	400	199	22	Fig.2
	300	ＮＳ- 300-　1Ｚ1	ＮＳ- 300-　1Ｚ2	420	500	249	25	Fig.2
	500	ＮＳ- 500-　1Ｚ1	ＮＳ- 500-　1Ｚ2	420	500	249	43	Fig.2
24	50	ＮＳ- 　50-　2Ｚ1	ＮＳ- 　50-　2Ｚ2	230	230	150	9	Fig.1
	100	ＮＳ- 100-　2Ｚ1	ＮＳ- 100-　2Ｚ2	420	400	199	18	Fig.2
	200	ＮＳ- 200-　2Ｚ1	ＮＳ- 200-　2Ｚ2	420	400	199	21	Fig.2
	300	ＮＳ- 300-　2Ｚ1	ＮＳ- 300-　2Ｚ2	420	400	199	25	Fig.2
	500	ＮＳ- 500-　2Ｚ1	ＮＳ- 500-　2Ｚ2	420	500	249	36	Fig.2
	750	ＮＳ- 750-　2Ｚ1	ＮＳ- 750-　2Ｚ2	420	500	249	45	Fig.2
	1K	ＮＳ-　1K-　2Ｚ1	ＮＳ-　1K-　2Ｚ2	420	500	349	52	Fig.2
	1.5K	ＮＳ-1.5K-　2Ｚ1	ＮＳ-1.5K-　2Ｚ2	400	550	770	110	Fig.3
	2K	ＮＳ-　2K-　2Ｚ1	ＮＳ-　2K-　2Ｚ2	400	550	770	130	Fig.3
48	50	ＮＳ- 　50-　4Ｚ1	ＮＳ- 　50-　4Ｚ2	230	230	150	9	Fig.1
	100	ＮＳ- 100-　4Ｚ1	ＮＳ- 100-　4Ｚ2	420	400	199	18	Fig.2
	200	ＮＳ- 200-　4Ｚ1	ＮＳ- 200-　4Ｚ2	420	400	199	21	Fig.2
	300	ＮＳ- 300-　4Ｚ1	ＮＳ- 300-　4Ｚ2	420	400	199	25	Fig.2
	500	ＮＳ- 500-　4Ｚ1	ＮＳ- 500-　4Ｚ2	420	400	199	34	Fig.2
	750	ＮＳ- 750-　4Ｚ1	ＮＳ- 750-　4Ｚ2	420	500	249	45	Fig.2
	1K	ＮＳ-　1K-　4Ｚ1	ＮＳ-　1K-　4Ｚ2	420	500	349	50	Fig.2
	1.5K	ＮＳ-1.5K-　4Ｚ1	ＮＳ-1.5K-　4Ｚ2	420	500	349	62	Fig.2
	2K	ＮＳ-　2K-　4Ｚ1	ＮＳ-　2K-　4Ｚ2	400	550	770	120	Fig.3
	3K	ＮＳ-　3K-　4Ｚ1	ＮＳ-　3K-　4Ｚ2	450	600	860	160	Fig.3
100	50	ＮＳ- 　50-　8Ｚ1	ＮＳ- 　50-　8Ｚ2	230	230	150	9	Fig.1
	100	ＮＳ- 100-　8Ｚ1	ＮＳ- 100-　8Ｚ2	420	400	199	17	Fig.2
	200	ＮＳ- 200-　8Ｚ1	ＮＳ- 200-　8Ｚ2	420	400	199	21	Fig.2
	300	ＮＳ- 300-　8Ｚ1	ＮＳ- 300-　8Ｚ2	420	400	199	25	Fig.2
	500	ＮＳ- 500-　8Ｚ1	ＮＳ- 500-　8Ｚ2	420	400	199	32	Fig.2
	750	ＮＳ- 750-　8Ｚ1	ＮＳ- 750-　8Ｚ2	420	500	249	40	Fig.2
	1K	ＮＳ-　1K-　8Ｚ1	ＮＳ-　1K-　8Ｚ2	420	500	349	50	Fig.2
	1.5K	ＮＳ-1.5K-　8Ｚ1	ＮＳ-1.5K-　8Ｚ2	420	500	349	62	Fig.2
	2K	ＮＳ-　2K-　8Ｚ1	ＮＳ-　2K-　8Ｚ2	400	550	770	120	Fig.3
	3K	ＮＳ-　3K-　8Ｚ1	ＮＳ-　3K-　8Ｚ2	450	600	860	160	Fig.3
	5K	ＮＳ- 　5K-　8Ｚ1	ＮＳ-　5K-　8Ｚ2	510	690	1000	250	Fig.3
200	500	ＮＳ- 500- 18Ｚ1	ＮＳ- 500- 18Ｚ2	420	500	249	36	Fig.2
	750	ＮＳ- 750- 18Ｚ1	ＮＳ- 750- 18Ｚ2	420	500	249	45	Fig.2
	1K	ＮＳ-　1K- 18Ｚ1	ＮＳ-　1K- 18Ｚ2	420	500	349	53	Fig.2
	1.5K	ＮＳ-1.5K- 18Ｚ1	ＮＳ-1.5K- 18Ｚ2	420	500	349	65	Fig.2
	2K	ＮＳ- 　2K-18Ｚ1	ＮＳ-　2K- 18Ｚ2	400	550	770	130	Fig.3
	3K	ＮＳ- 　3K-18Ｚ1	ＮＳ-　3K- 18Ｚ2	450	600	860	180	Fig.3
	5K	ＮＳ- 　5K-18Ｚ1	ＮＳ-　5K- 18Ｚ2	510	690	1000	250	Fig.3

NS3 Series Three Phases Output Products List

Input Voltage	Capacity	Types	Width	Depth	Height	Weight	Dimensional OutlineDrawing
（Ｖ）	（ＶＡ）	Output 3φ AC200V	(mm)	(mm)	(mm)	(kg)	Figure Number
24	1K	ＮＳ3-　1K-　2Ｚ	400	550	770	110	Fig.3
	2K	ＮＳ3-　2K-　2Ｚ	450	600	860	130	Fig.3
	3K	ＮＳ3-　3K-　2Ｚ	510	690	960	230	Fig.3
100	1K	ＮＳ3-　1K-　8Ｚ	400	550	770	110	Fig.3
	2K	ＮＳ3-　2K-　8Ｚ	450	600	860	130	Fig.3
	3K	ＮＳ3-　3K-　8Ｚ	510	690	960	230	Fig.3
	5K	ＮＳ3-　5K-　8Ｚ	580	780	1150	300	Fig.3
200	3K	ＮＳ3-　3K-18Ｚ	510	690	960	230	Fig.3
200	5K	ＮＳ3-　5K-18Ｚ	580	780	1150	320	Fig.3

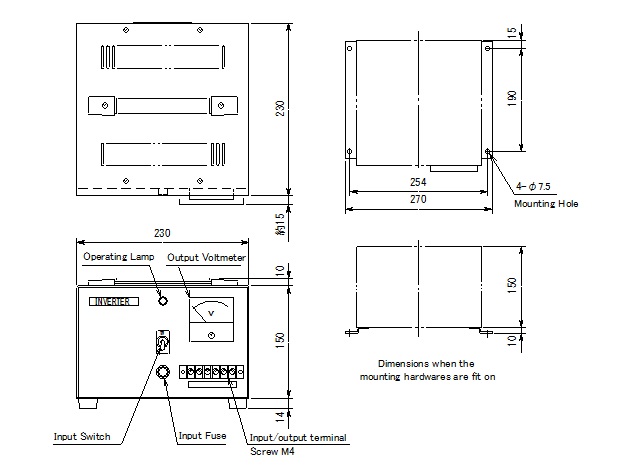

ＮＳ-50 Series 　Dimensional Outline Drawing　　　（　Fig-１　）

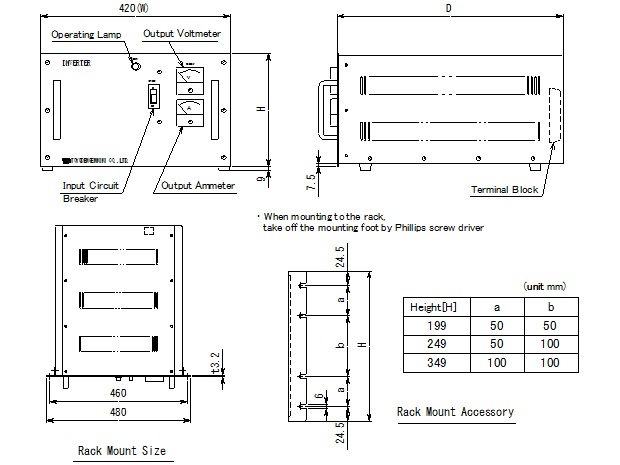

ＮＳ，ＮＳ3 Series　　　Dimensional Outline Drawing　　　（　Fig-２　）　

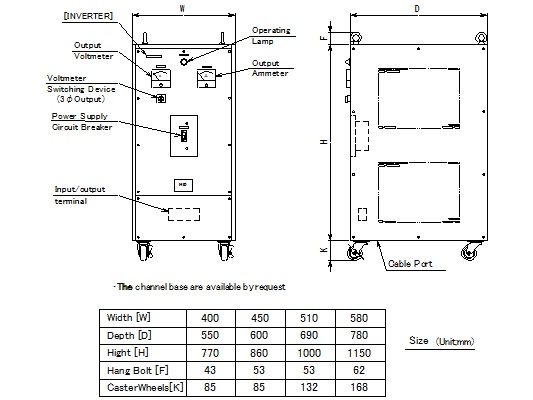

ＮＳ，ＮＳ3 Series Dimentional Outline Drawing (Fig-3)
