Home >> DC-DC Converter >>SDX　Series

ＳＤＸ　Series　　　　　Brief Summery 　　　　　　　　

		Air-cooling system and wide operating temperature -20℃～＋50℃
		Do not adopt the aluminum electric or the tantalum capacitors.
		Wide input range.
		Response to wide voltage variation ranges.
		More downsizing are available as semi-standard
		specification by equipping air-cooling blower.
		Custom-order and the larger capacity products are acceptable by order

ＳＤＸ Series　　　Specifications　

Output Voltage Variable Range 5V	3.0Ｖ～5.5Ｖ	Operating Temperature /Humidity	-20℃～＋50℃　20～90％RH(no dew)
12Ｖ	7.5Ｖ～13.2Ｖ	Storage Temperature/Humidity	-40℃～＋85℃　20～90％RH(no dew)
(SDX100A12　:　8.3V～15.1V)		Overcurrent Protection	Operate at 105% and over of Rated Current , Automatic Recovery
24Ｖ	14.4Ｖ～26.4Ｖ	Overcurrent Protection	Output Block Down System, Recover by the Input Reinstall
Statistic Input Variation Influence	24ｍＶ～95ｍＶmax	WithstandVoltage	Primary-Secondary DC1500V 1 minute
Statistic Loading Variation Influence	24ｍＶ～190ｍＶmax	Vibration	Nonoperation 10～55Ｈｚ, each three times for Ｘ，Ｙ，Ｚ axes.
Ripple （ｐ-ｐ）	48ｍＶ～180ｍＶ	Shock	196ｍ／ｓ²（20Ｇ）,　each three times for Ｘ，Ｙ，Ｚ axes.
Cooling System	Air cooling	Safety Standard	In Compliant with ＵＬ60950，Ｃ-ＵＬ，ＥＮ60950

ＳＤＸ Series　　　　　Production List　　　　

Model Name	Types	Input Voltage	Rated Output Voltage	Max Rate Current	Outline Dimension (mm)
SDX50	SDX502412	24V(18～36Ｖ）	12Ｖ	4.2Ａ	W32ｘH88.5ｘD94.5 Except the terminal block
	SDX502424	24V(18～36Ｖ）	24Ｖ	2.1Ａ
	SDX504812	48V(36～76Ｖ）	12Ｖ	4.2Ａ
	SDX504824	48V(36～76Ｖ）	24Ｖ	2.1Ａ
SDX100	SDX1002412	24V(18～36Ｖ）	12Ｖ	8.4Ａ	W52ｘH88.5ｘD94.5 Without the Heat SinkW32xH88.5xD94.5 Except the terminal block
	SDX1002424	24V(18～36Ｖ）	24Ｖ	4.2Ａ
	SDX1004812	48V(36～76Ｖ）	12Ｖ	8.4Ａ
	SDX1004824	48V(36～76Ｖ）	24Ｖ	4.2Ａ
SDX200	SDX2002412	24V(18～36Ｖ）	12Ｖ	16.7Ａ	W82ｘH88.5ｘD94.5 Without the Heat SinkW32xH88.5xD94.5 Except the terminal block
	SDX2002424	24V(18～36Ｖ）	24Ｖ	8.4Ａ
	SDX2004812	48V(36～76Ｖ）	12Ｖ	16.7Ａ
	SDX2004824	48V(36～76Ｖ）	24Ｖ	8.4Ａ
SDX350	SDX3502412	24V(20～36Ｖ）	12Ｖ	25Ａ	W73ｘH88.5ｘD160 Without the Heat SinkW33xH88.5xD160 Except the terminal block
	SDX3502424	24V(20～36Ｖ）	24Ｖ	14.5Ａ
	SDX3504812	48V(36～76Ｖ）	12Ｖ	29Ａ
	SDX3504824	48V(36～76Ｖ）	24Ｖ	14.5Ａ
SDX400	SDX4004812	48V(36～76Ｖ）	12Ｖ	40Ａ	W83ｘH88.5ｘD160 Without the Heat SinkW33xH88.5xD160 Except the terminal block
SDX400	SDX4004824	48V(36～76Ｖ）	24Ｖ	21Ａ
SDX100A	SDX100A5	110V(45～160Ｖ）	5Ｖ	20Ａ	W33ｘH88.5ｘD154 Except the terminal block
SDX100A	SDX100A12	110V(45～160Ｖ）	12Ｖ(15V)	7.3Ａ	W33ｘH88.5ｘD154 Except the terminal block
SDX150A	SDX150A24	110V(66～160Ｖ）	24Ｖ	6.3Ａ	W54ｘH88.5ｘD154 Without the Heat SinkW33xH88.5xD154 Except the terminal block

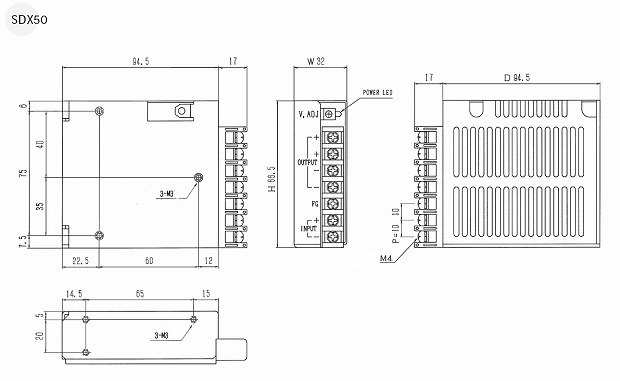

SDX50 Series Dimensional Outline Drawing

SDX100/200 Series Dimensional Outline Drawing

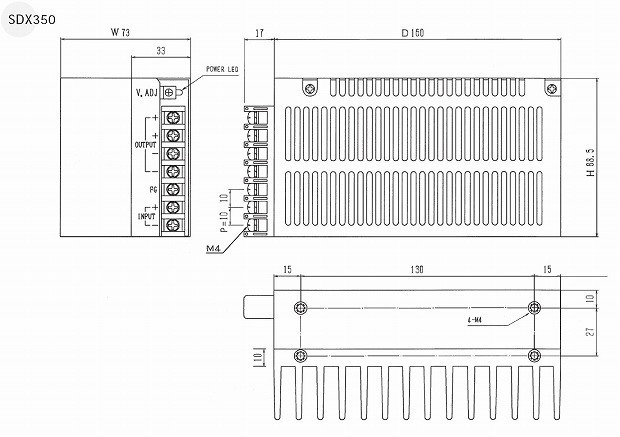

ＳＤＸ350　Series　　Dimensional Outline Drawing

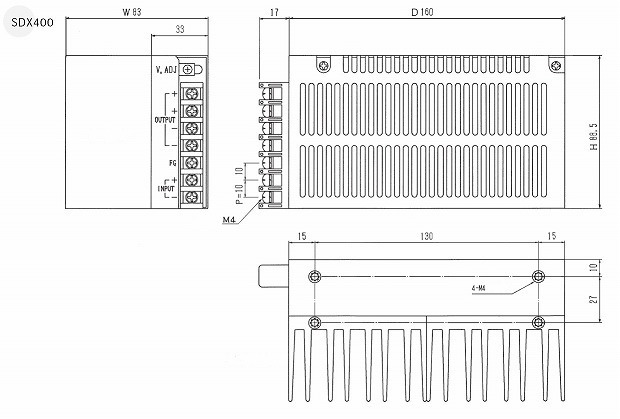

ＳＤＸ400 Series　　Dimension Outline Drawing

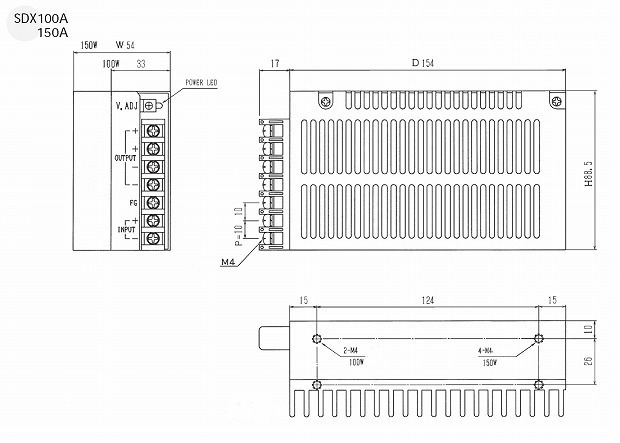

ＳＤＸ100Ａ／150Ａ　Series　Dimension Outline Drawing
